৳3,500.00

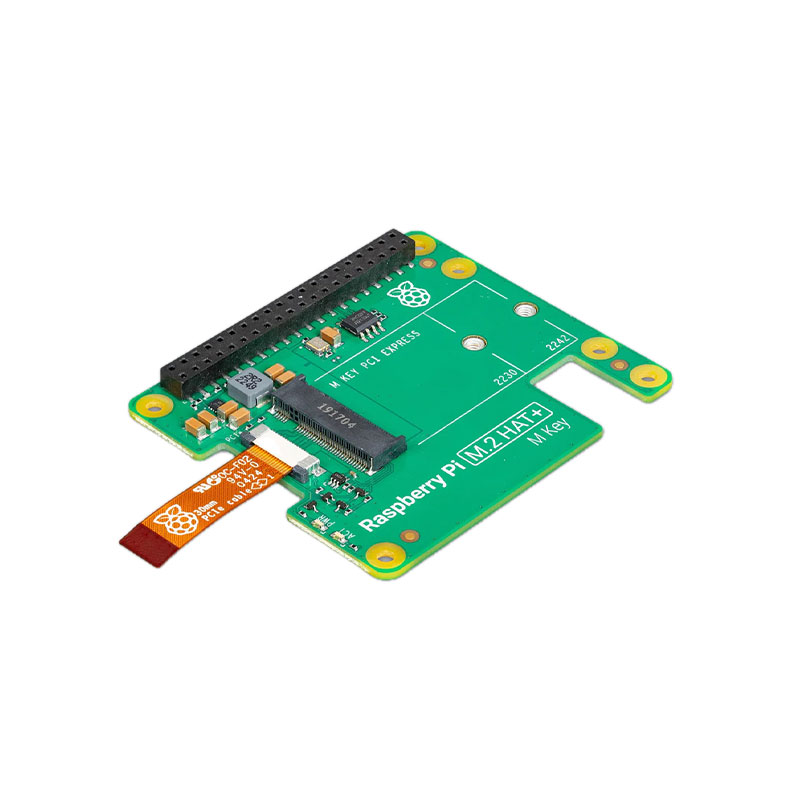

The Raspberry Pi M.2 HAT+ is a highly functional and purpose-built expansion board designed exclusively for the Raspberry Pi 5. It provides users with an easy and seamless way to connect high-speed M.2 peripherals, such as NVMe SSDs or AI accelerators, to their Raspberry Pi via the PCIe 2.0 interface. With transfer rates of up to 500 MB/s, this HAT is ideal for those looking to enhance storage capabilities or leverage the power of edge AI acceleration.
By converting the Raspberry Pi 5’s single-lane PCI Express 2.0 interface into a standard M.2 M Key slot, this HAT unlocks a host of opportunities for high-performance computing in a compact format. Whether you are building a mini NAS, setting up AI workloads, or simply expanding your Pi’s capabilities, the Raspberry Pi M.2 HAT+ delivers a robust, plug-and-play solution that stays true to the modular philosophy of the Raspberry Pi ecosystem.
This HAT is tailor-made for the Raspberry Pi 5, utilizing its 16-pin, 0.5mm-pitch FPC PCIe connector to deliver a reliable and high-speed interface for external devices. Raspberry Pi 5 owners can now experience native PCIe NVMe booting or offload machine learning inference tasks with supported AI modules. The HAT+ is autodetected by updated versions of the Raspberry Pi OS, so no manual configuration is required—just connect, boot, and you’re ready to go.
The included PCIe ribbon cable, stacking header, spacers, and mounting hardware make it easy to securely mount the HAT while maintaining compatibility with the official Raspberry Pi Active Cooler. The compact form factor ensures a minimal footprint while delivering maximum functionality.
One of the standout features of the Raspberry Pi M.2 HAT+ is its compatibility with M Key M.2 devices. This includes high-speed NVMe SSDs and AI acceleration modules like the Hailo-8, both of which are supported in form factors 2230 and 2242. Whether your application is data-heavy or compute-intensive, this HAT+ can handle the load while delivering efficient power with up to 3A available to connected peripherals.
Additionally, the HAT includes activity and power LEDs, which provide helpful status feedback during device operation. This aids in troubleshooting and ensures transparency in device behavior, especially useful for development and diagnostic purposes.
The Raspberry Pi M.2 HAT+ is built to last. With a specified operating temperature of 0°C to 50°C, it is suited for general desktop and embedded applications. Raspberry Pi has committed to maintaining the M.2 HAT+ in production until at least January 2032, giving developers and commercial users peace of mind in terms of long-term availability and support.
The mechanical design follows the Raspberry Pi HAT+ specification, ensuring proper integration into existing Raspberry Pi hardware ecosystems. This includes the inclusion of a stacking GPIO header that supports the attachment of additional HATs above the M.2 HAT+, although extra-tall stacking headers are needed to do so.
Beyond individual usage, Raspberry Pi offers convenient kits that bundle the M.2 HAT+ with other components. The Raspberry Pi SSD Kit includes this HAT with an official SSD, while the Raspberry Pi AI Kit pairs it with a Hailo AI module for powerful machine learning acceleration.
Additionally, minimalist and stackable cases are available for housing your expanded setup. For users looking to integrate this HAT inside the official Raspberry Pi 5 case, it is technically possible by modifying or omitting parts of the enclosure—an option for advanced users or developers.
| Specification | Detail |
|---|---|
| Compatibility | Raspberry Pi 5 only |
| Interface | PCIe 2.0 (single-lane) |
| Peak Data Transfer | Up to 500 MB/s |
| Supported M.2 Key | M Key |
| Supported Form Factors | 2230, 2242 |
| Power Delivery | Up to 3A to connected M.2 devices |
| LEDs | Power and activity indicators |
| Operating Temperature Range | 0°C to 50°C (ambient) |
| Compliance | Regional certifications available via pip.raspberrypi.com |
| Product Lifetime | Guaranteed production until at least January 2032 |
| SKU | Raspberry Pi SC1166 |
| EAN | 5056561801463 |
1x Raspberry Pi M.2 HAT+
1x PCIe ribbon cable
1x 16mm GPIO stacking header
4x Threaded spacers
8x Mounting screws
1x Knurled double-flanged screw for securing M.2 device
Note: Raspberry Pi 5 and NVMe devices are not included in the package.
The Raspberry Pi M.2 HAT+ is ideal for hobbyists, makers, educators, and professionals alike. Developers looking to increase local storage or deploy AI projects can take advantage of high-speed NVMe performance and real-time processing with external accelerators. Whether you’re creating a home server, media center, or embedded edge AI device, this HAT opens new avenues for performance and expandability in the Pi world.
The Raspberry Pi M.2 HAT+ is more than just an accessory—it’s an essential upgrade for anyone looking to maximize the capabilities of their Raspberry Pi 5. With a fast and efficient PCIe interface, broad peripheral support, and a futureproof design, this HAT brings workstation-class expansion to the beloved Raspberry Pi platform. Whether you’re a developer needing fast storage or an enthusiast building an AI powerhouse, the Raspberry Pi M.2 HAT+ delivers performance, reliability, and flexibility in one compact package.
The latest price of Raspberry Pi M.2 HAT+ in Bangladesh is BDT ৳3,500.00. You can buy the Raspberry Pi M.2 HAT+ at the best price from our Electro Bit BD or visit Electro Bit BD Office.
